Base Station Deployment Graphical Assisted Simulation Platform

The positioning base station pre-deployment simulation platform supports positioning algorithm simulation for TOF, TDOA, and AOA modes.

By adjusting the locations and number of base stations to create different topological structures, this system quickly estimates the number of base stations required for the target area and visually displays the distribution of positioning accuracy within that area.

It provides guidance to engineers for base station location calibration, deployment strategy planning, and estimating the expected number of base stations before construction and deployment.

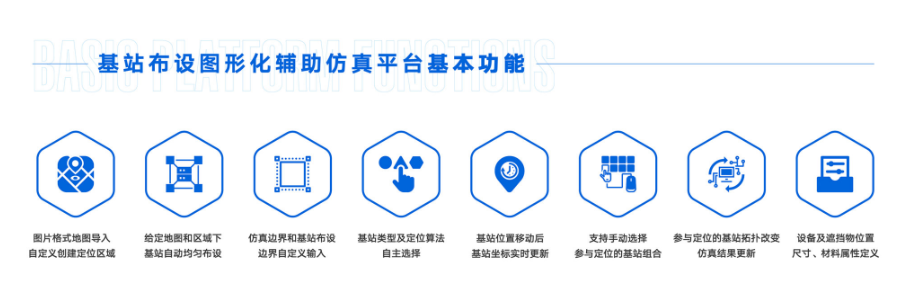

The platform interface and specific functions are as follows:

1. Importing maps in image formats and creating custom location areas, among other features;

2. Given a map and a specific area, base stations are automatically distributed uniformly; functions include adding, removing, and moving base stations;

3. Supports custom input of simulation boundaries and base station deployment boundaries;

4. Base station coordinates are updated in real time after their positions are moved.

5. Supports manual selection of the combination of base stations involved in positioning;

6. Simulation results update automatically when the topology of base stations involved in positioning changes.

7. Users can freely select base station types (TOF/TDOA/AOA) and positioning algorithms (1D, 2D);

8. Definition of the location, dimensions, and material properties of electrical equipment and obstructions in the actual environment;

9. Display format is 2D.

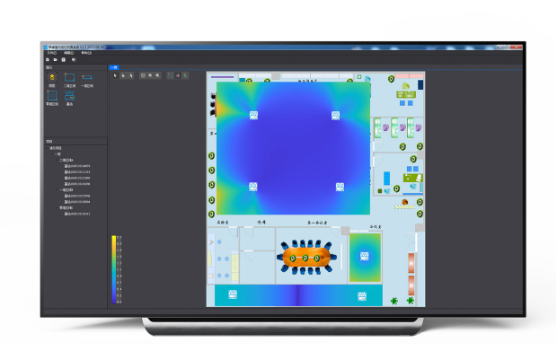

▲ Simulation Platform Interface
