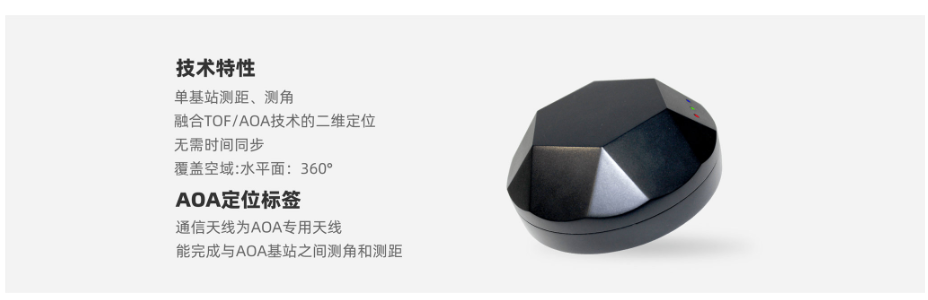

Ultra-Wideband AOA Single Base Station Positioning System

The Ultra-Wideband AOA array antenna single base station positioning system requires only one base station to achieve high-precision 3D positioning with accuracy better than 20cm. Compared to the 4-5 base stations required for traditional UWB 2D and 3D positioning, it saves over 60% in costs. There is no need to consider topology during installation, the deployment method is more flexible, and it can reduce construction materials and workload by 60%, shortening the project period.

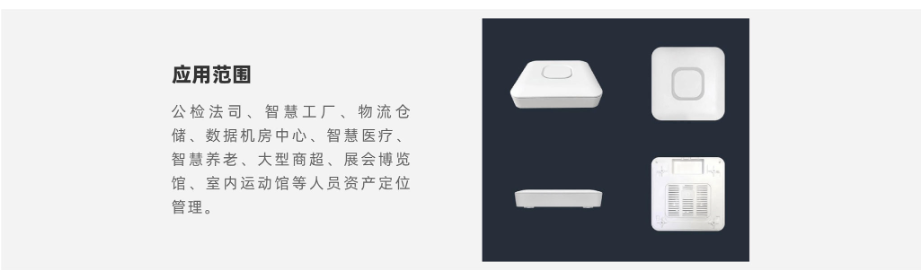

Bluetooth AOA Single Base Station Positioning System

The Bluetooth AOA smart positioning base station uses 2.4GHz AOA (Angle of Arrival) precise positioning technology, combined with a high-precision positioning antenna array and a self-developed high-precision adaptive algorithm, achieving real-time positioning accuracy of up to 0.1 meters.

This product uses standard Ethernet data communication and 802.3af POE48V power supply.

The product features a square ceiling-mounted design that is aesthetically pleasing, technologically advanced, and easy to install. A single base station supports high-precision 2D positioning. Standard POE power supply eliminates the need for separate power wiring.

Separate Ultra-Wideband Single Base Station Positioning AP

Ultra-Wideband AOA + WIFI6

The coverage of a WIFI AP is similar to that of a UWB AOA base station, with a radius of approximately 25m to 50m. By integrating the WIFI6 AP with UWB indoor positioning technology, it provides a wireless fusion positioning solution for high bandwidth and low latency, achieving the integration of communication and positioning in terms of coverage. Compared to traditional TDOA/TOF solutions that require multiple UWB base stations, it significantly reduces system deployment and maintenance costs. Compared to 4G/5G data transmission solutions, it greatly ensures data real-time performance and accuracy, rivaling Ethernet data transmission strategies.

Ultra-Wideband AOA Positioning and Video Tracking Intelligent Surveillance System

This system integrates an Ultra-Wideband AOA positioning and video tracking intelligent surveillance system and monitoring method. The surveillance system includes UWB positioning tags, integrated monitoring terminals, and a backend management unit. It achieves two-way data transmission, 360-degree blind-spot-free monitoring with a single monitoring terminal, and possesses both positioning and video surveillance functions.

Communication and Positioning Integration

Ultra-Wideband AOA + 5G

5G indoor distribution base stations and UWB AOA base stations have similar coverage, approximately a radius of 30m to 50m. By integrating the 5G indoor network with UWB indoor positioning technology, it provides a fusion positioning solution for 5G networks, achieving the integration of communication and positioning in terms of coverage. Compared to the traditional positioning method based on TDOA technology where a single 5G base station connects to 4 UWB base stations, it greatly reduces system deployment and maintenance costs.

The fusion architecture is shown in the figure:
